Description

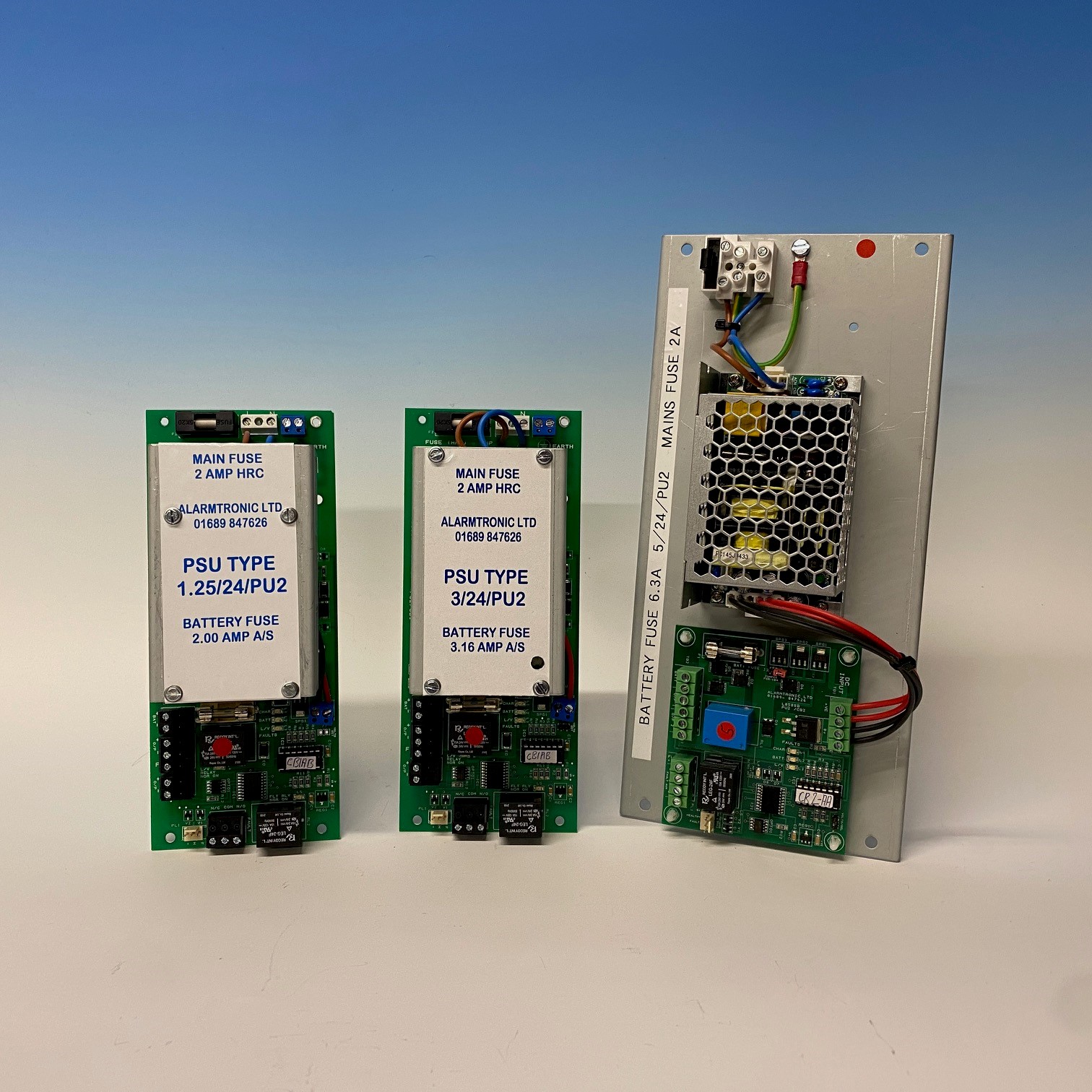

A range of unboxed Switch Mode 12v & 24v DC power supplies suitable for charging Sealed Lead Acid Batteries .
The power supplies are designed to meet BS EN54 and BS 5839 They also meet the requirements of both the EMC and Low Voltage directives .

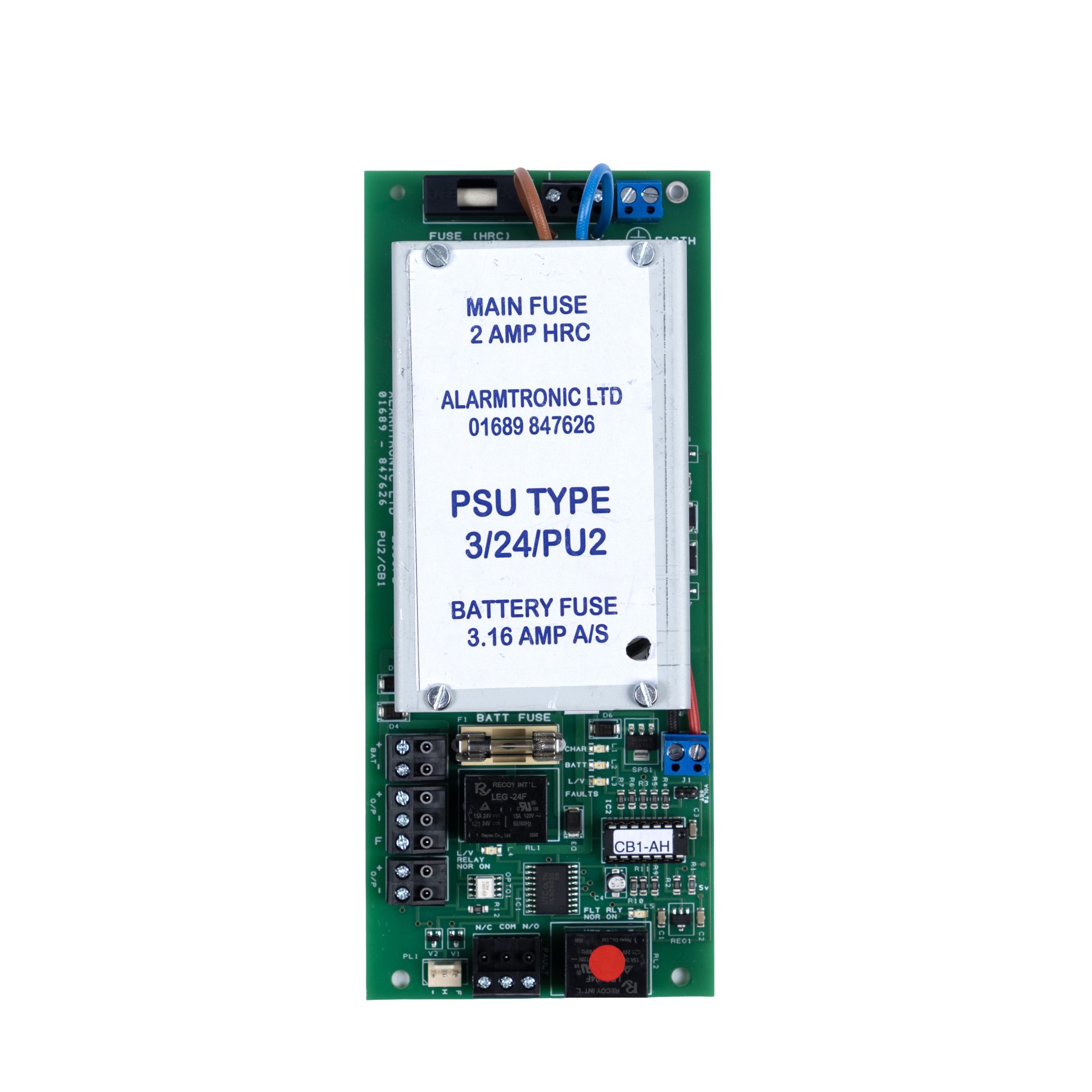

Each power supply is chassis mounted or can be if asked and are easily secured via four fixing holes .
Two sets of power output terminals are provided together with Battery input , Fault auxiliary output and power supply healthy Output . The low voltage terminals are of the pluggable type ( except 5 & 10 amp version ) .
Fault monitoring is provided for mains failure , charger failure and Battery disconnection . Internal LED’s are provided for mains/charger and battery fault indication . Low voltage battery monitoring will disconnect the battery to protect it from over discharge . A battery reverse connection protection circuit is also provided . The Fault auxiliary contact ( CHO ) is fail safe .
Connecting pins are also provided for remote LED indication for Healthy and Fault
