Description

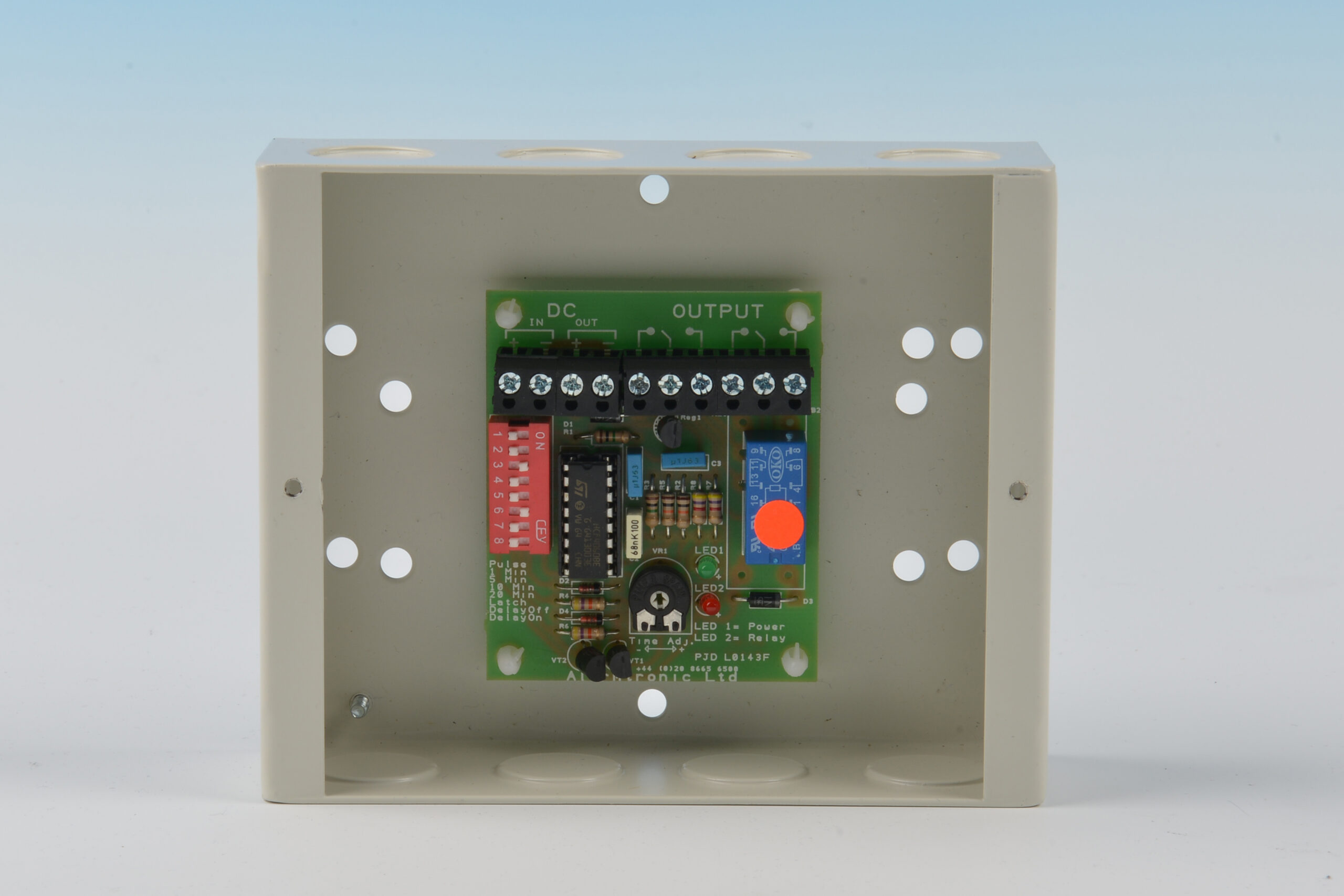

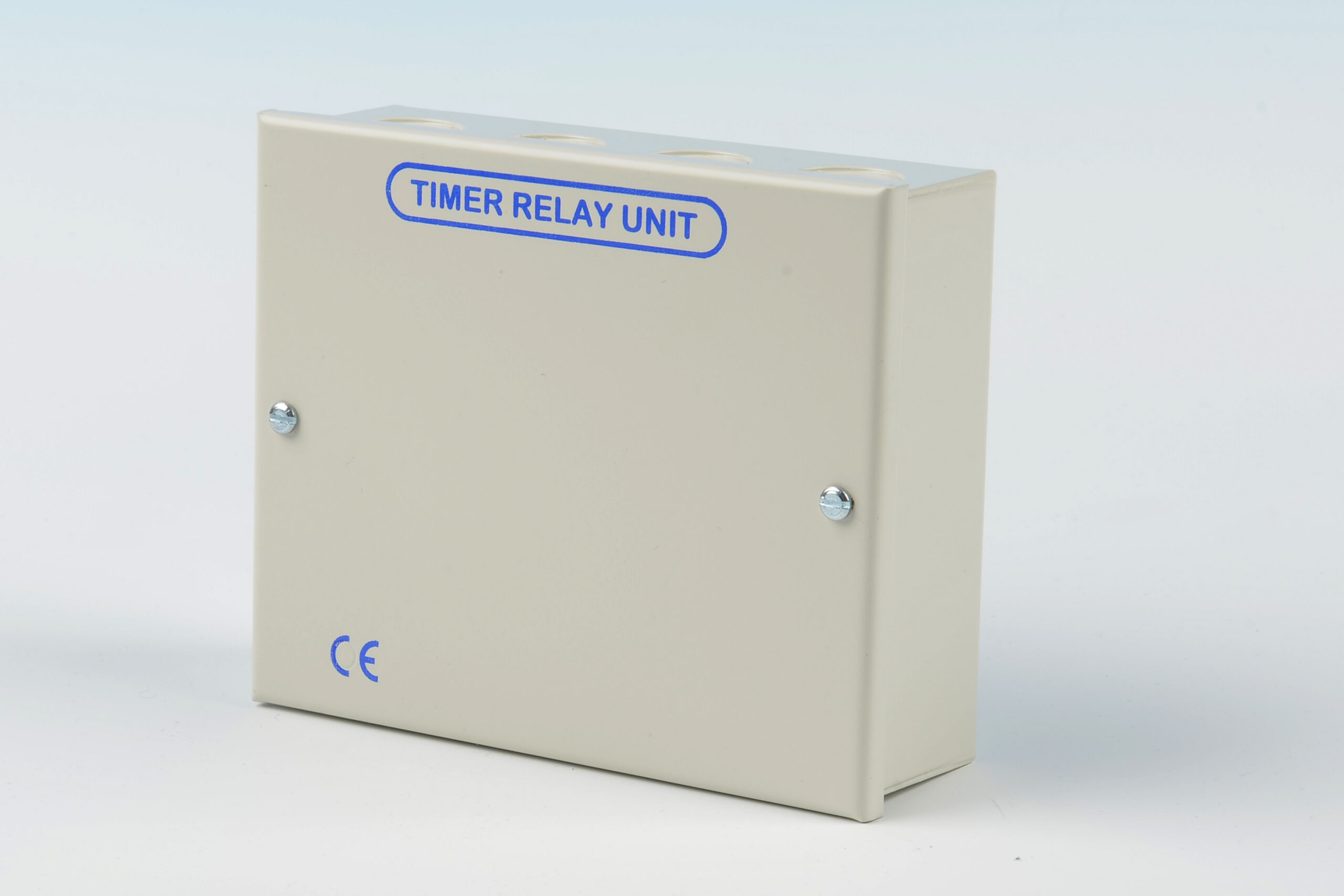

A multi-purpose timer relay suitable for a number of applications. The Timer relay is housed in a Sheet steel metal enclosure With entry knockouts located in both Top & Bottom of the enclosure together with internal wall fixings.
The timer relay can be set to various modes selected by a DIL switch. Operating modes can be Delay ON , Delay OFF and Pulse. The timing period is Variable from 0.5sec to 20 minutes.
The relay has two sets of CHO contacts rated at 1 amp. The coil is both polarised and diode suppressed. Coil terminals are proved for both Input & outputs to enable inline.
Internal LED’s give both Timer ON and Relay Operated indication.
