Description
***** THIS IS A BESPOKE ITEM AND ARTWORK DRAWINGS WILL NEED APPROVAL BEFORE MANUFACTURE *****
The Series 7000ASP range of Analogue Addressable Main Sprinkler/Life Safety Alarm Control Panels are designed to conform to BS EN12845 : 2015. Available in 1 & 3 Loops as standard using a “meter bus” protocol as used by several manufactures with various Internal Power supply ratings and Space for Standby Sealed Lead Batteries.

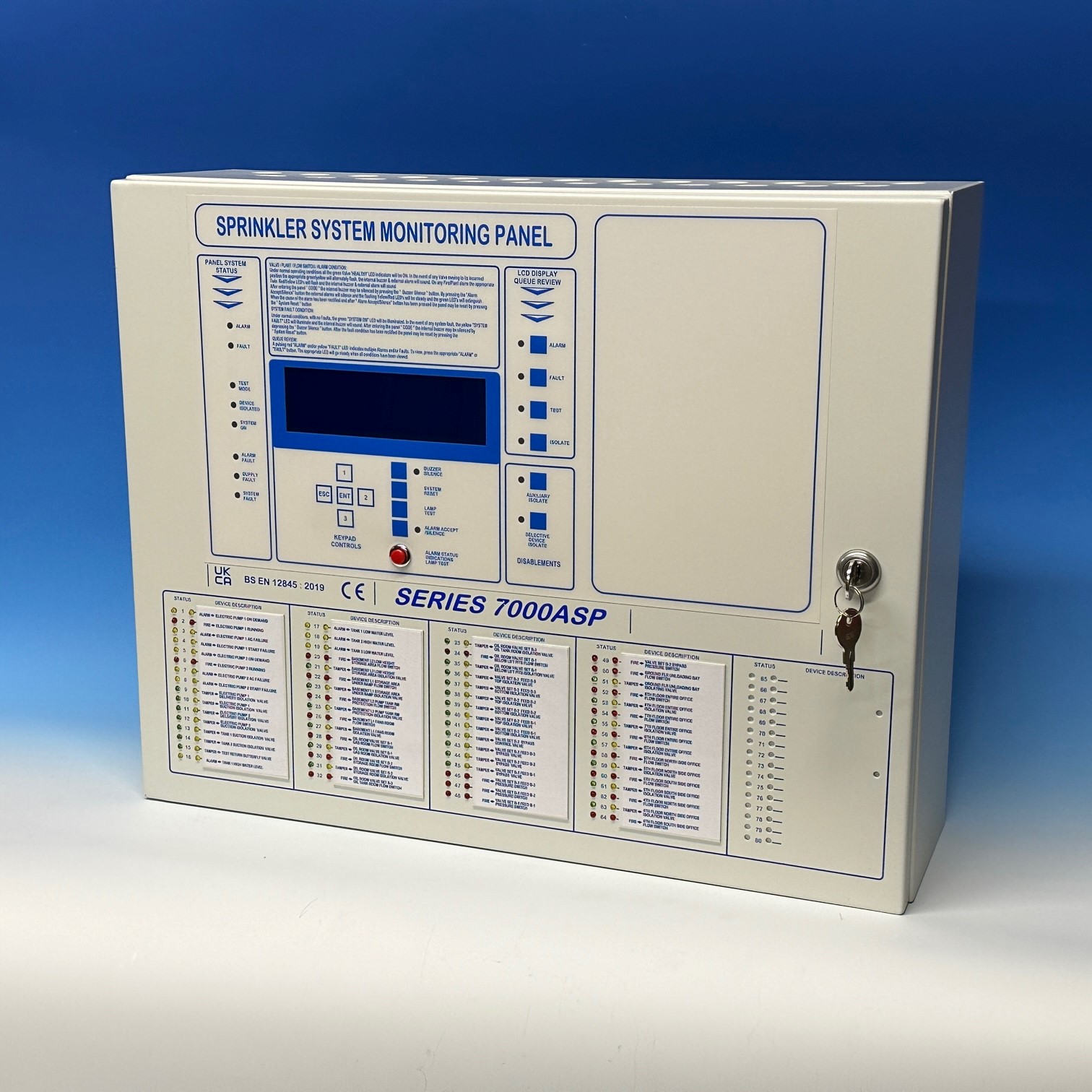

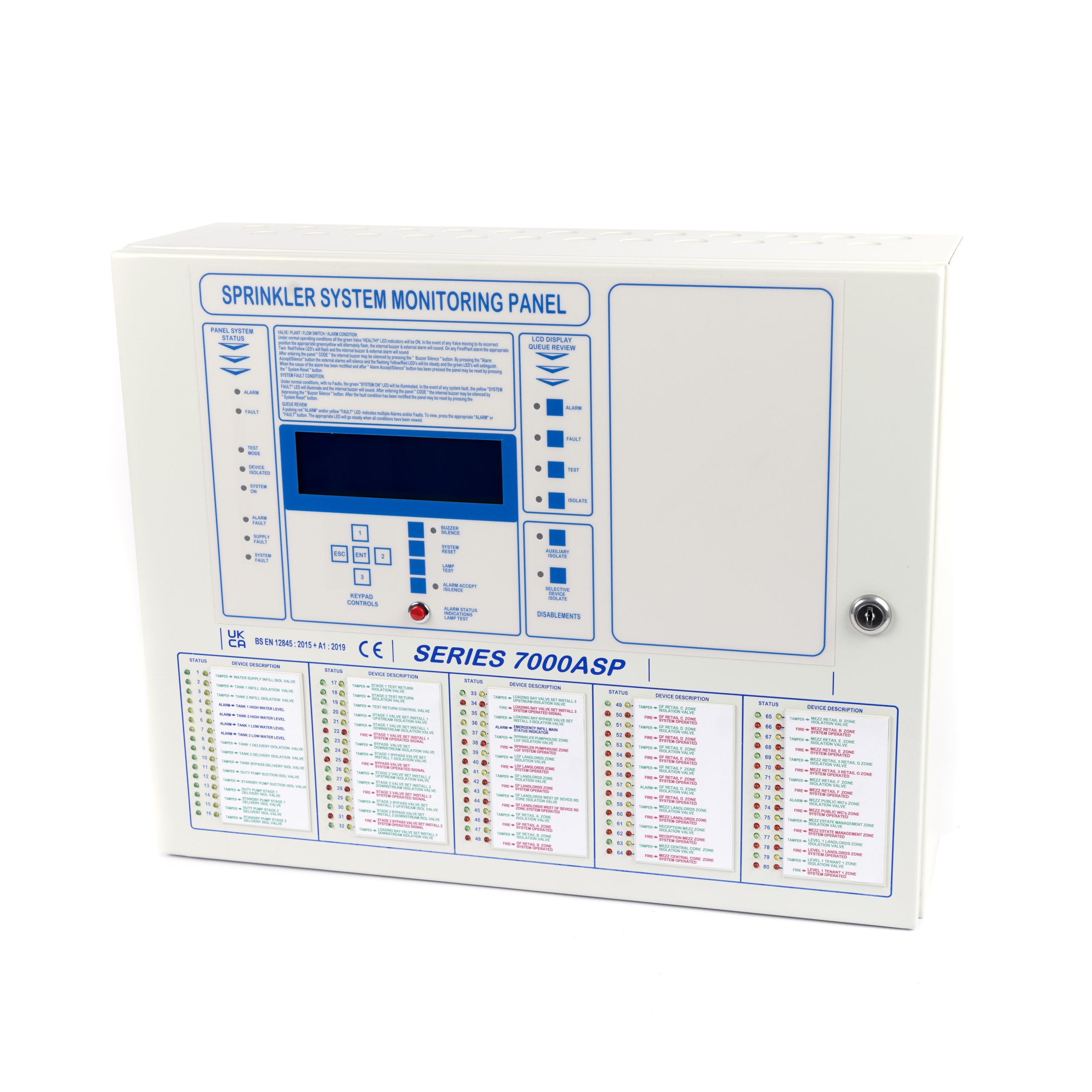

The panel is housed in an attractive metal enclosure with a hinged lockable door. All indications and controls together with user instructions are provided on the Front facia. A bezel can be fitted to the back Box to enable the control panel to be Flush Mounted.
Special colours or non standard finishes are available to special order.
A back-lit 4 x 40 Character LCD display provides status and programmable location of each event. Device status LED’s for Valve being Green & Yellow (Open/Closed) . Flow Switch Status LED’s being Green & Red (Normal /Fire). Plant Alarm Status LED’s can being Green & Yellow (Normal / Alarm). Any Device way can be configured for either Valve Status or Flow Switch/Plant alarm as per clients specification.
Each Device Status LED ’s can be screen printed with location legends.
An Layout/Artwork drawing will be provided for approval before manufacture.
Auxiliary contacts are provided for any Common Valve/Flow switch or Plant Alarm (2 sets CHO) and 3 programmable Relays (1 sets CHO each) for Common Valve, Common Flow Switch & Common Plant.
The panel will be pre- programmed prior to dispatch. Local programming is achieved by the onboard keypad or via a AT keyboard socket.
