Description

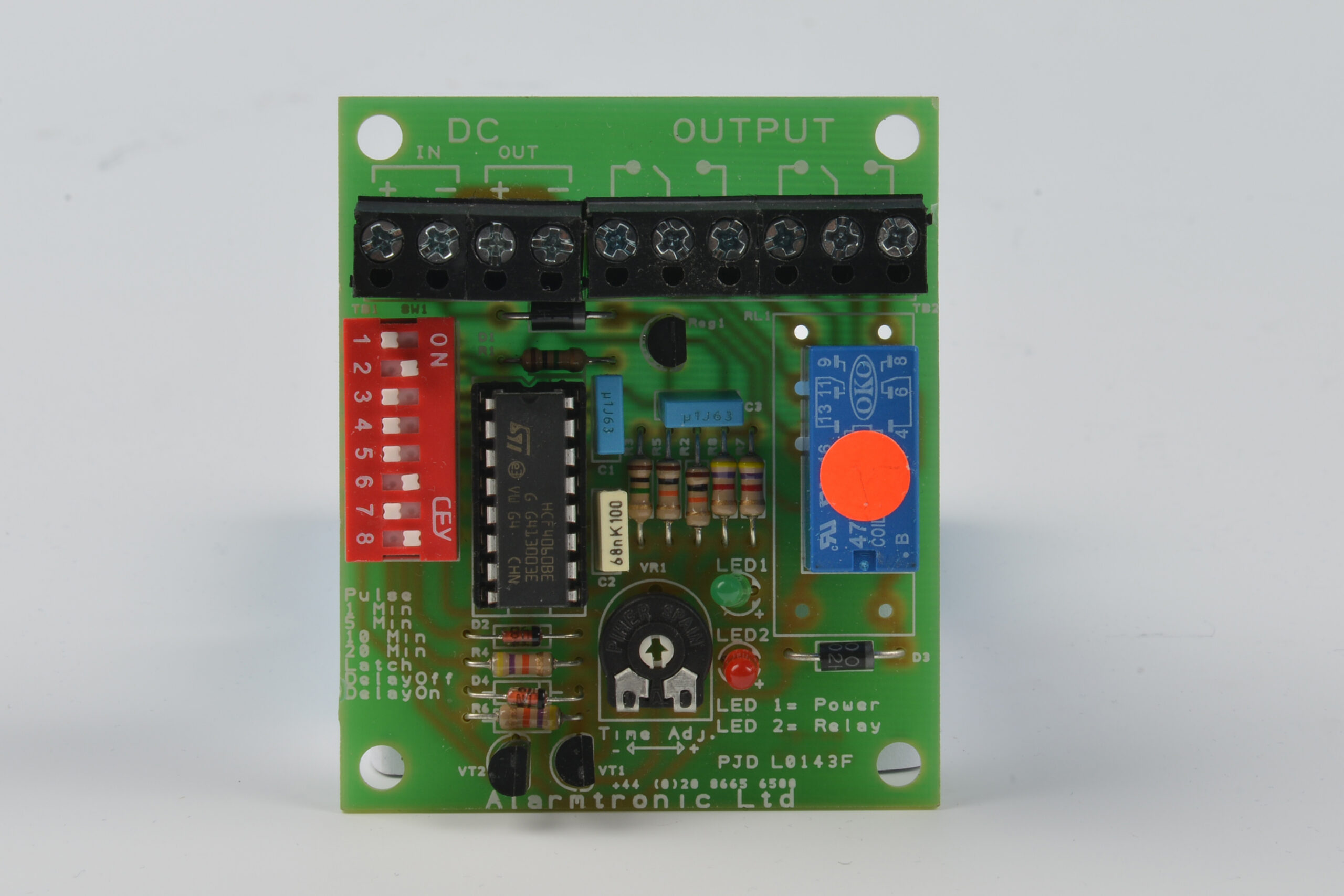

A multi-purpose timer PCB suitable for a number of applications and supplied with self – adhesive fixing plastic spacers.
The timer relay can be set to various modes selected by a DIL switch. Operating modes can be Delay ON , Delay OFF and Pulse. The timing period is variable from 0.5 seconds to 20 minutes.
The relay has two sets of CHO contacts rated at 1 amp. The coil ( 24v DC ) is both polarised and diode suppressed . Supply terminals are terminals are provided for both input and output to enable inline connection.
LED’s give both Timer ON and relay operated indication.
